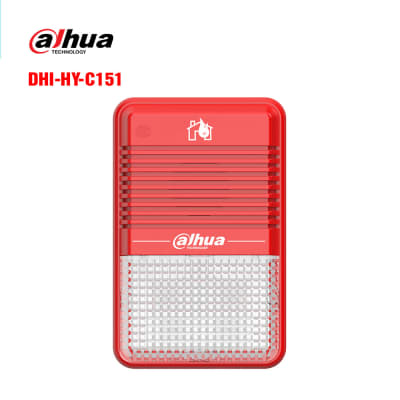

DHI-HY-C151 Sirena+Luz estroboscópica Dahua convencional , 3mts a 75dB(A) DC 16V~28V

Conventional Sounder Strobe

> Meets all requirements of latest EN54
> Two-wire, polarity-free realizes convenient wiring
> Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
> Ultra-low consumption and strong loading capacity
> Loud sound output over 75 dB(A) at 3 meters, accompanied with bright alarm signal
> Non-loosening screws on base terminal for easy installation
> Contacts material is highly acid-resistant and rust-resistant

Technical Specification

> Working Voltage : DC16V-DC28V
> Rated Power : 132.6mW
> Current :Standby current: ≤ 400μA , Alarm current: ≤ 8mA
> Alarm Mode: Visual and audible alarm
> Alarm Volume : Modified Tone:4s-5s , Sound Pressure Level:75dB-115dB (A) at 3 m (9.84 ft)
> Operating Temperature : –10°C to +55°C (+14°F to +131°F)
> Operating Humidity : ≤ 95% RH (no condensation)
> Dimensions (with base) :125 mm × 80 mm × 40 mm (4.92" × 3.15" × 1.57")
> Weight (with base) : 118 g (0.26 lb)
> Installation : Wall Mount
> Compliance Standard : EN54-3:2014,EN54-23:2010

Ficha Tecnica: https://www.dahuasecurity.com/es/products/All-Products/Fire-Alarm/Conventional-Fire-Alarm-System/Alarm-Notification-Devices/HY-C151
