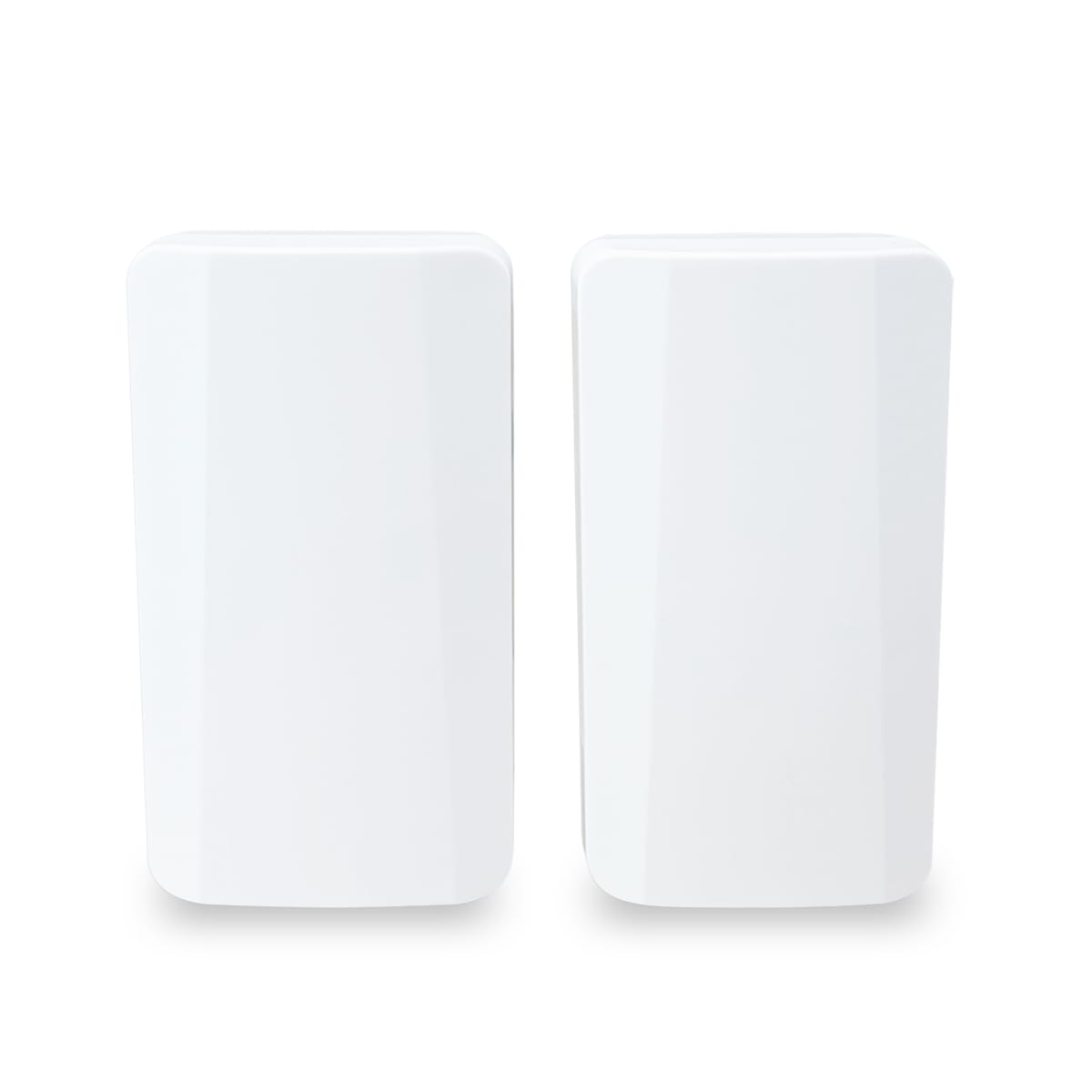

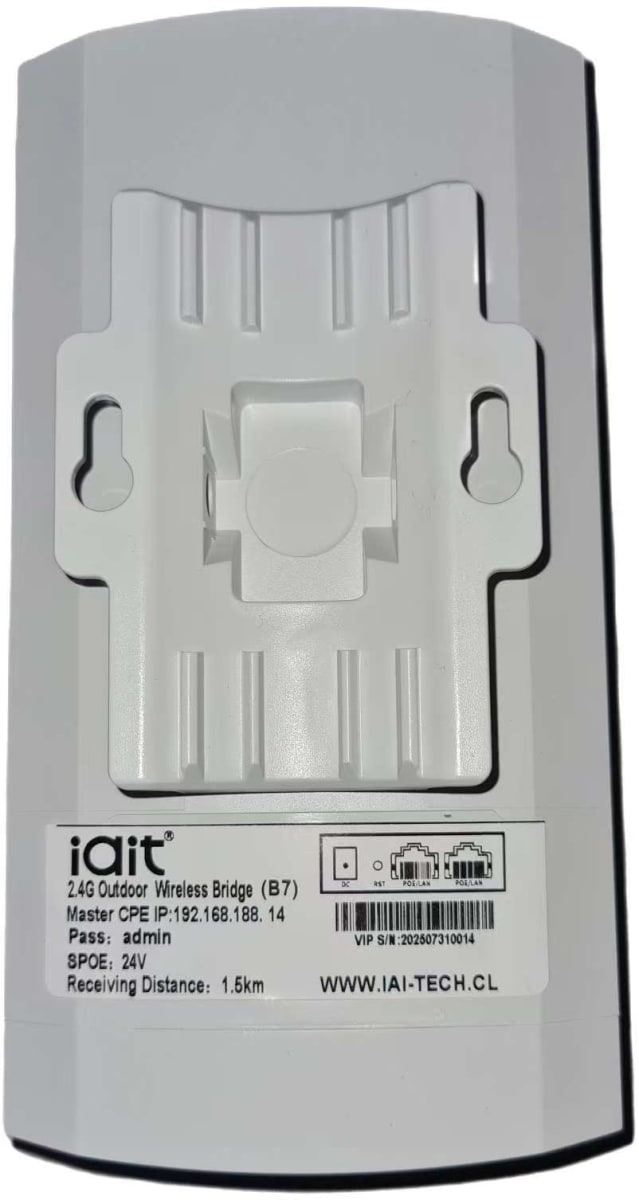

1.5KM KIT ANTENA Par POE 24V/(PoE no estándar) 100Mbps 5~10CAMARAS 2.4Ghz 300Mbps IAI TECH

Product Model

TBC-APE2721

CPU

MT7628DAN

Flash

8M

DDR2

64M

2.4G operating frequency band

2.412 GHz - 2.484GHz

2.4G WIFI transmission protocol

802.11 b/g/n

Built-in antenna 2.4G

2.4G directional antenna*1, gain: 8dBi

SSID hiding

support

Maximum rate

300Mbps

Maximum supported wireless access

20+

2.4G wireless power

802.11b

11M

18±2dBm

1M

21±2dBm

802.11g

54M

17±2dBm

6M

20±2dBm

802.11n HT20

MCS7

16±2dBm

MCS0

19±2dBm

802.11n HT40

MCS7

15±2dBm

MCS0

18±2dBm

2.4G receiving sensitivity

802.11b

11M

-85dBm

1M

-94dBm

802.11g

54M

-72dBm

6M

-88dBm

802.11n HT20

MCS7

-68dBm

MCS0

-86dBm

802.11n HT40

MCS7

-66dBm

MCS0

-85dBm

2.4G EVM

802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB

Frequency deviation (ppm)

±20ppm

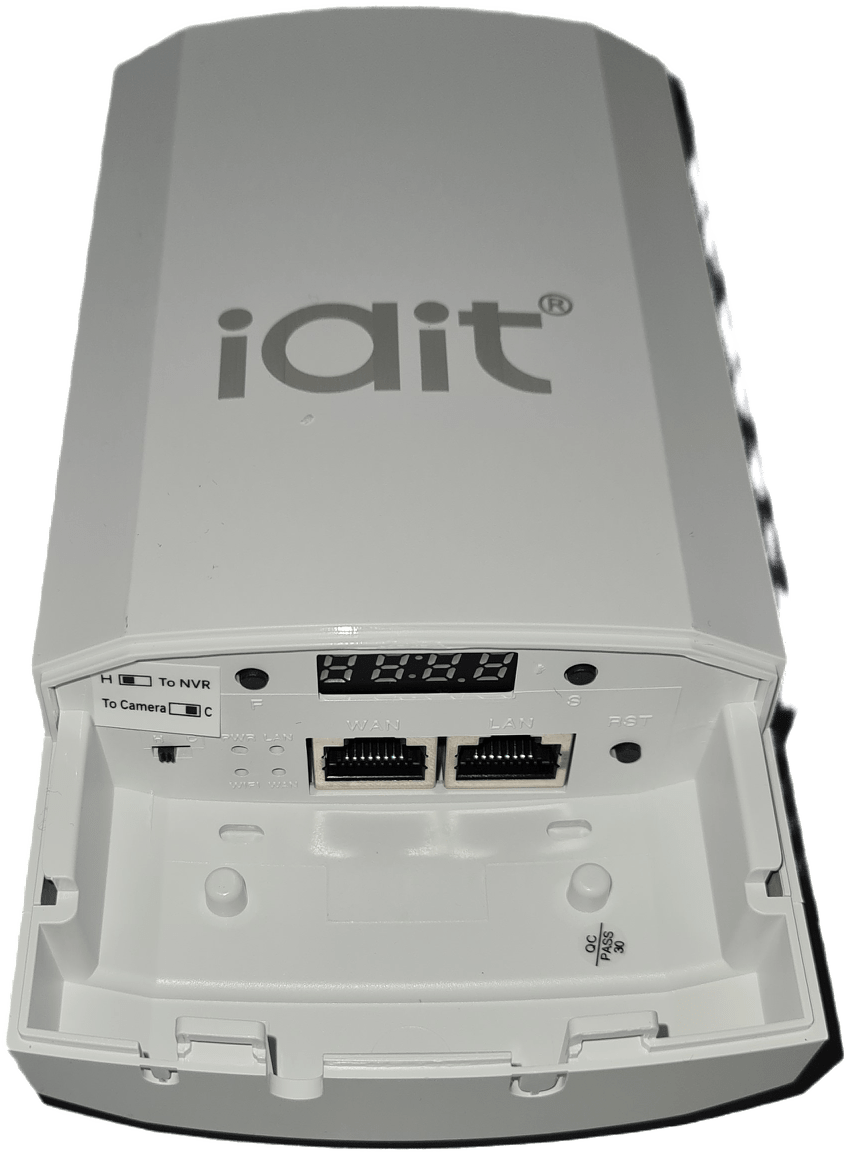

Interface (WAN)

1 * 10/100M adaptive WAN port, support POE power supply

Interface (LAN)

1 *  10/100M adaptive LAN port,

Features

Watchdog function

WEB comes with WIFI analyzer

Digital display screen (can display information such as master/slave, channel, signal strength, etc.)

Support TDMA

Network management function

Support AC management in AP mode

POE

24V 0.5A

button

Reset button (press for 10 seconds to restore to factory defaults, press for 1 second to initiate pairing)

1 DIP switch button (left slave, right master)

2 digital display control buttons; function button F and selection button S

Status indicator

System indicator, WAN port indicator, LAN indicator, WiFi indicator

Waterproof

IP65

ESD Test - I

±6KV

Surge Test - I

±2KV

Maximum power consumption

< 5W

Product size

168mm*88mm*57.6mm

Work Environment

Normal operating temperature: -30°C to 55°C;

Extreme operating temperature: -40°C to 70°C;

Storage temperature: -40°C to 70°C;

Humidity: 5% to 95% (no condensation)
